Solinst Levelogger App and Interface

  • Wireless Communication Communicate wirelessly with your leveloggers
  • Smart Technology Employs the smart technology already being used
  • Perfect for use in the Field Program and start dataloggers in the field
  • Efficient and Simple Makes data collection very efficient and eliminates the need to bring a laptop to the field
Product Options
111348

Overview

Solinst Levelogger App

The Brand new Solinst Levelogger App has been specifically designed to communicate with solinst dataloggers wirelessly. This particular App can be downloaded for free from the App StoreSM straight onto your Apple® iOS 7 smart device (iPhone 5, iPad 4th generation, iPad mini and iPod touch 5th generation). Connection of your datalogger to the App is simply done by using the App Interface for the Levelogger Series which uses Bluetooth® wireless technology to connect to your Apple® smart device.

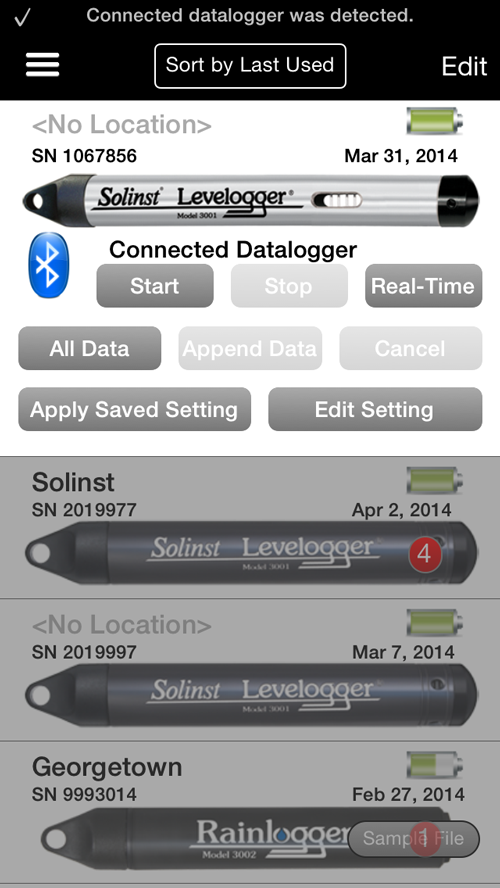

Using the levelogger App is very simple as it is superbly streamlined and intuitive providing information about the connected Levelogger including serial number, location and battery level. A great feature of the App is that it provides all the major programming options that are available with the conventional Solinst Levelogger PC Software without the need for a laptop in the field. Up to 10 program settings can be saved that can be applied to Leveloggers, which can help standardize all Leveloggers across a project.

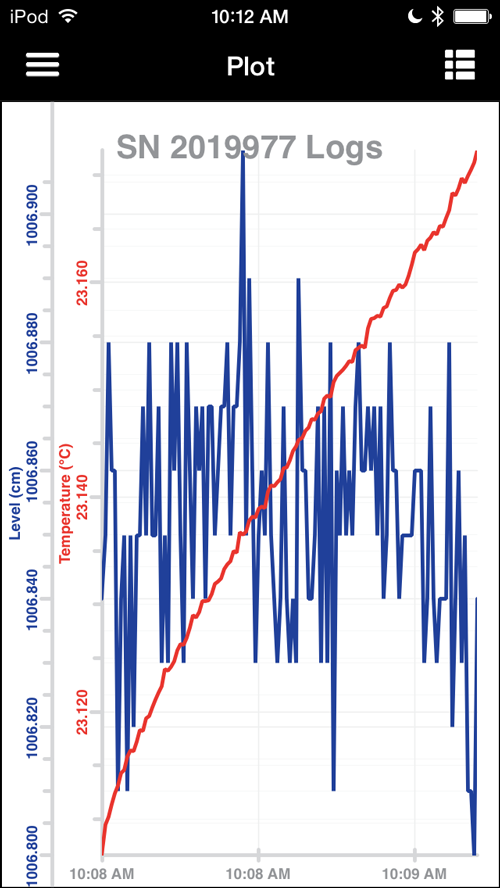

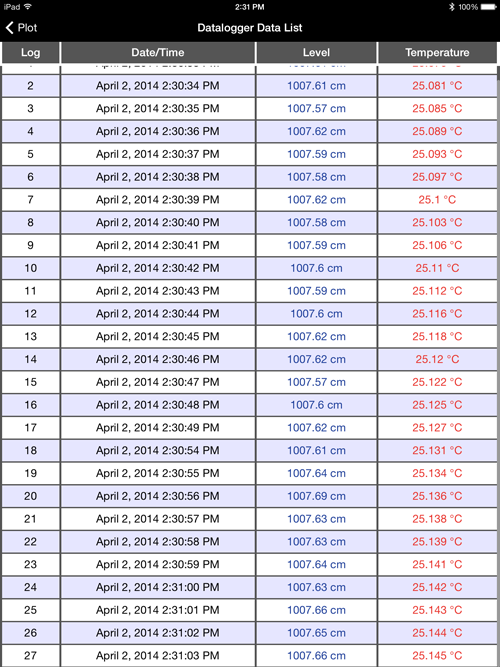

The App enables real-time readings from the connected datalogger to be checked as well as viewing of logged readings in a graph or database format all of which can be downloaded onto your smartphone and e-mailed or transferred directly to a computer. Using Data Wizard in the Levelogger PC Software allows data files to be compensated.

Levelogger App Interface

The App Interface is a simple portable hardware connection that connects to the top of the dataloggers Direct Read Cable, once connected data can viewed and dataloggers can easily be programmed using the Levelogger App.

The Solinst App Interface has been desgined to be used on the move as it is compact, easily transported and powered using four 1.5V AA lithium batteries and an auto-off after 10 minutes of inactivity feature to save power. The App Interface is compatible with the Levelogger Edge, Barologger Edge, Levelogger Junior Edge, LTC Levelogger Junior, Rainlogger Edge along with the older Levelogger Gold, Barologger Gold, Levelogger Junior and Rainlogger.

Operation is simple:

  • Download the Solinst Levelogger App on your Apple smart device running iOS 7. The App is free through the App StoreSM.
  • Connect Levelogger App Interface to the top end of Levelogger's Direct Read Cable - turn on.
  • Enable Bluetooth in your smart device and pair the Levelogger App Interface to device.
  • Launch the Solinst Levelogger App.

®Apple, iPhone, iPad, iPod touch, and iPod are trademarks of apple inc., registered in the U.S. and other countries. iPod mini is a trademark of Apple Inc. App Store is a service mark of Apple inc.

“Made for iPod,” “Made for iPhone,” and “Made for iPad” mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with the iPod, iPhone or iPad may affect wireless performance.

iOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license. Other trademarks and trade names are those of their respective owners.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Solinst Canada Ltd. is under license.

Manufactured by: Solinst
Model: Solinst Levelogger App and Interface

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance

Specification

Levelogger App Interface Specifications
IP Rating IP 64
Materials Black Delrin®, 316 stainless steel
Operating Temperature –20°C to +50°C
Batteries 4 x 1.5V AA replaceable lithium batteries
Battery Life 500 full Levelogger downloads @ 21°C
Size Ø 2.25” x 4.875” (Ø 57 mm x 124 mm)
Weight 13.7 oz. (388 grams)

Downloads

FAQ's

Water level data from remote Leveloggers can be sent using the model 9500 LevelSender, which uses a GSM cellular modem to send the data to a home computer station or mobile device via email/SMS.
Leveloggers are connected to LevelSenders using a Reader cable which connects to the Levelogger’s Direct Read Cable. This can be done by removing the black dust cap from the LevelSender, lining up the holes and pushing the Reader Cable connector into the LevelSender connection and screwing the Reader Cable into the connection on the LevelSender until tight. Then connect the other end of the reader cable to the top end of the Levelogger’s direct read cable.
Within the diagnostic utility there is an option called ‘read memory dump’ this will access previous logs from a backup location. This dumps all of the Leveloggers memory into a .xle file.

The free app is available on both Apple® and Android™ smart devices.
Apple devices must be running iOS 11 or later on the following compatible devices:

  • iPhone
  • iPad
  • iPad mini
  • iPod touch.

Android devices must be running version 5.0 or higher. Solinst does not guarantee compatibility on all devices running 5.0, but testing confirms the following can be used:

  • Phone: Samsung Galaxy S4 - Model SGH-1337M
  • Phone: Samsung Galaxy S5 - Model SM-G900W8
  • Tablet: Samsung Tab 4 (10.1”) - Model SM-T530NU

As the Levelogger App Interface will not connect directly to the top of a Solinst datalogger, it is necessary to have connection accessories. With the Levelogger or Rainlogger, one of the following accessories is required:

  • Direct Read Cable, clients use this option to suspend dataloggers in the field when they wish to communicate downhole.
  • When working with Leveloggers that are suspended from wireline, or cord, the units must be removed from the well and connected to either a Direct Read Cable (as above) or an Optical Adaptor.
  • For the LevelVent, just connect to the unit via the Vented Cable and LevelVent Wellhead that all units are suspended from in the field – no other connection accessories are required.
  • The AquaVent communication connection is made from the App Interface to the AquaVent Wellhead using an App Connector Cable that is ordered separately.
The Levelogger App Interface is portable hardware that connects to the top of your Levelogger via a Direct Read Cable/Adaptor, to a LevelVent Wellhead, or to an AquaVent Wellhead cable. Bluetooth wireless technology allows communication between the Levelogger App Interface and the smart device with the app installed. It allows viewing/downloading of data, and programming of Solinst dataloggers, as well as many other features.
Solinst offers a wide range of dataloggers that can be used with the Leveloggger App Interface. They include the complete, current Levelogger Edge range of units (Edge, Junior Edge, LTC Edge, Rainlogger Edge), previous Gold Leveloggers/Barologgers, and the latest vented datalogger editions, the AquaVent and LevelVent.
  • Program and start dataloggers in the field.
  • Simplify data management in the field by transporting and using less equipment.
  • View real-time readings.
  • Download and e-mail logged data files.
  • Calibrate LTC Leveloggers (NEW).
  • Run the diagnostic utility (NEW) – used for troubleshooting

Leveloggers. Provides detailed information on the datalogger,
and includes options for running a self-test, doing a memory
dump and creating/emailing reports.

Follow these links to some step by step tutorials from Solinst to ensure your USB driver is installed correctly: Windows 7, Windows 8, Windows 10
