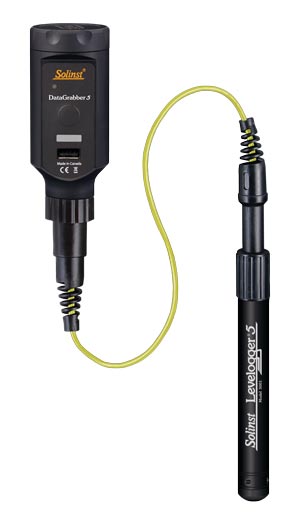

Solinst Model 3001 DataGrabber

  • Easy to Use One push-button to download data with LED light to indicate operation
  • Independent Data Transfer Data transfer does not interrupt running Levelogger
  • Compatibility Compatible with all 3001/3002 loggers and most USB flash drive keys
  • Connection Options Connects to a Direct Read Cable or Optical Adaptor
Product Options
111939

Overview

The 3001 DataGrabber, from Solinst, provides a low cost, portable solution for Levelogger users to download data directly to a USB flash drive key.

It is suitable for use with 3001 and 3002 loggers (Levelogger Edge, Barologger Edge, Levelogger Junior Edge, LTC Levelogger Junior, Rainlogger Edge, as well as the now discontinued Levelogger Gold, Barologger Gold, Levelogger Junior, and Rainlogger dataloggers.)

Manufactured by: Solinst
Model: Solinst Model 3001 DataGrabber

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance

Specification

IP Rating IP 64 (dust and splash proof)
Materials ABS black, 316 stainless steel
Operating Temperature -20°C to +50°C
Battery 9V replaceable alkaline or lithium battery
Size 1.80" dia. x 3.91" (45.7 mm dia. x 99.3 mm)
Weight 5.79 oz. (180 grams)
Compatible With Levelogger Edge, Barologger Edge, Levelogger Junior Edge, LTC Levelogger Junior, Rainlogger Edge, as well as the older Levelogger Gold, Barologger Gold, Levelogger Junior, and Rainlogger dataloggers.

Downloads

FAQ's

As the Levelogger App Interface will not connect directly to the top of a Solinst datalogger, it is necessary to have connection accessories. With the Levelogger or Rainlogger, one of the following accessories is required:

  • Direct Read Cable, clients use this option to suspend dataloggers in the field when they wish to communicate downhole.
  • When working with Leveloggers that are suspended from wireline, or cord, the units must be removed from the well and connected to either a Direct Read Cable (as above) or an Optical Adaptor.
  • For the LevelVent, just connect to the unit via the Vented Cable and LevelVent Wellhead that all units are suspended from in the field – no other connection accessories are required.
  • The AquaVent communication connection is made from the App Interface to the AquaVent Wellhead using an App Connector Cable that is ordered separately.
The Levelogger App Interface is portable hardware that connects to the top of your Levelogger via a Direct Read Cable/Adaptor, to a LevelVent Wellhead, or to an AquaVent Wellhead cable. Bluetooth wireless technology allows communication between the Levelogger App Interface and the smart device with the app installed. It allows viewing/downloading of data, and programming of Solinst dataloggers, as well as many other features.
Solinst offers a wide range of dataloggers that can be used with the Leveloggger App Interface. They include the complete, current Levelogger Edge range of units (Edge, Junior Edge, LTC Edge, Rainlogger Edge), previous Gold Leveloggers/Barologgers, and the latest vented datalogger editions, the AquaVent and LevelVent.
  • Program and start dataloggers in the field.
  • Simplify data management in the field by transporting and using less equipment.
  • View real-time readings.
  • Download and e-mail logged data files.
  • Calibrate LTC Leveloggers (NEW).
  • Run the diagnostic utility (NEW) – used for troubleshooting

Leveloggers. Provides detailed information on the datalogger,
and includes options for running a self-test, doing a memory
dump and creating/emailing reports.

The most recent version of the Android App available is 1.2.5 but that is only available for download if your Android device has Android version 8 (oreo) or above. That means, any device running older Android versions can not download the most recent App-This is a restriction that Google has set.
