pro.IQ moisture analyzer packaged solution

  • Features the HygroProII Moisture Transmitter
  • IP66 and NEMA 4X package
  • Moisture Measurement in a Few Simple Steps
Product Options

Overview

The Panametrics pro.IQ is a moisture analyser packaged solution which provides accurate moisture measurement in hydrocarbon gas, liquids or inert gas applications.

The packaged solution includes the HygroProII moisture transmitter and simplifies the selection and installation of your moisture analyser.

Moisture measurement can be achieved in only a few simple steps; install the moisture transmitter, and connect your loop power and sample gas or liquid to the inlet.

Manufactured by: Panametrics
Model: pro.IQ moisture analyzer packaged solution

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance
  • IoT Cloud Compatible

Applications

Natural gas
Hydrocarbon gases
Hydrocarbon liquids
Petrochemical
Metal heat treatment
Industrial gas
Power generation

Specification

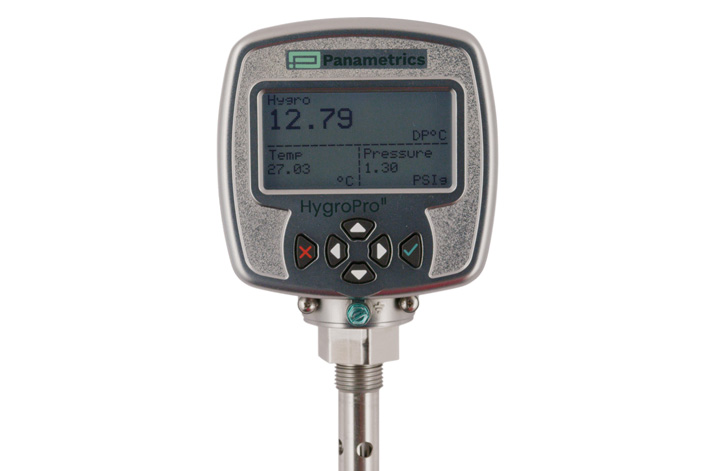

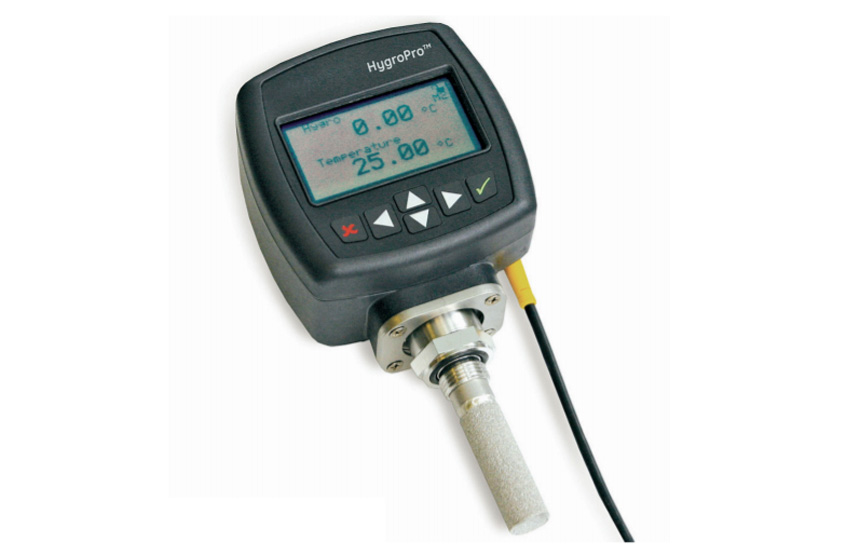

HygroProII specifications
Dew point/frost point calibration ranges Standard: –80°C to +10°C (-112°F to 50°F) with data from -110°C to +20°C (-166°F to +68°F)
Operating temperature –20°C to 60°C (–4°F to 140°F*)
*Refer to pro.IQ specifications for overall system limits
Storage temperature 70°C (158°F) maximum
Warm-up time Meets specified accuracy in three minutes
Calibrated accuracy @ 77°F (25°C)
  • ±2°C (±3.6°F) above -100°C (-148°F)
  • ±3°C (±5.4°F) below -100°C (-148°F)
Repeatability
  • ±0.2°C (±0.4°F) above -100°C (-148°F)
  • ±0.5°C (±0.9°F) below -100°C (-148°F)
Electrical
Power
  • Voltage: 12 to 30 VDC (loop-powered, customer supplied)>
  • Output: 4 to 20 mA analog and HART digital
  • Output resolution: 0.01 mA/12 bits
  • Cable: 6 ft (2 m), standard includes molded weatherproof connector with flying leads to connect transmitter to sample system terminal block>
Display
  • 128 x 64 LED backlit LCD
  • Display from one to three parameters and diagnostics
Mechanical
Sample connection 3/4-16 in (19 mm) straight male thread with o-ring
Operating pressure 5 μm Hg to 5,000 psig (345 bar*)
*Refer to pro.IQ specifications for overall system limits
Enclosure Type 4X/IP67
Dimensions
  • H x W x D: 198 x 102 x 65 mm (7.80 x 4.00 x 2.57 in)
  • Weight: 1250 g (2.75 lbs.)
European compliance Complies with EMC Directive 2004/108/EC and PED 97/23/EC for DN<25
Hazardous area certification
  • US/Canada: Class I, Division 1, Groups A, B, C and D; T4 Class II, III Division 1, Groups E, F and G; T4 (US Only) Class I, Zone 0, AEx ia IIC T4 Ga
  • US/Canada: Class I, Division 2, Groups A, B, C and D; T4 Class II, III Division 2, Groups F and G; T4 Class I, Zone 2, AEx ic IIC T4 Gc (US Only)
  • ATEX/IECEx: Ex ia IIC T4 Ga; Ex ic IIC T4 Gc

Moisture sensor
Sensor type Thin-film aluminum oxide moisture sensor
Calibration Each sensor is individually computer-calibrated against known moisture concentrations, traceable to national standards.
Calibration interval Sensor recalibration by Panametrics is recommended every six to twelve months depending on application.
Flow rate Gases: Static to 100 m/s linear velocity at 1 atm

Built-in temperature sensor
Type NTC thermistor
Operating range -30°C to 70°C (-22°F to 158°F)
Accuracy ±0.5°C (±0.9°F) overall
Response time (maximum) One second in well stirred oil or 10 seconds in still air for a 63% step change in increasing or decreasing temperature

Built-in pressure sensor
Type Solid state/piezoresistive
Available ranges
  • 30 to 300 psig (3 to 21 bar)
  • 50 to 500 psig (4 to 35 bar)
Accuracy ±1% of full scale (FS)
Pressure rating Three times the span of the specified range to a maximum of 7500 psig (518 bar*)
*Refer to pro.IQ specifications for overall system limits

Downloads

Related products

FAQ's

Sensor recalibration by Panametrics is recommended every six to twelve months depending on application.
The maximum response time of the temperature sensor is one second in well stirred oil or 10 seconds in still air for a 63% step change in increasing or decreasing temperature.
The maximum pressure rating is three times the span of the specified range to a maximum of 7500 psig (518 bar*).
*Refer to pro.IQ specifications for overall system limits
The operating pressure is 5 µm Hg to 5,000 psig (345 bar*).
*Refer to pro.IQ specifications for overall system limits
The flow rate in gases is: static to 100 m/s linear velocity at 1 atm.
