SITRANS LU AO Analog Output Module (Discontinued)

Product Options

Overview

PRODUCT DISCONTINUED - REPLACED BY THE LUT400, LR560, OR THE RD500 (APPLICATION DEPENDENT)

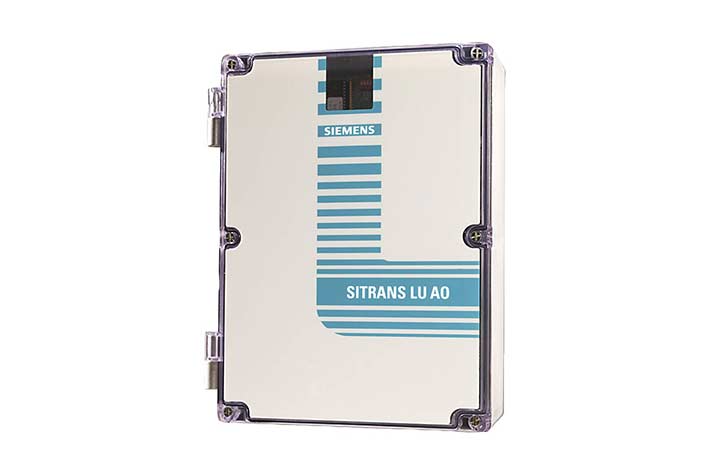

The Siemens SITRANS LU AO Analog Output Module provides remote analog output for the measurement points of the SITRANS LU10 level monitor.

The operation of the Siemens LU AO is programmed via the SITRANS LU10. The only on-board settings are for output testing and bank selection. The unit has 10 analog outputs (each sharing a negative bus which is isolated from ground).

Benefits

  • Analog outputs can be per transducer and/or average of 2 or more
  • Analog outputs can be up to 1500 m (5000 ft) from the SITRANS L 10

Manufactured by: Siemens-Milltronics
Model: SITRANS LU AO Analog Output Module (Discontinued)

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance

Applications

The SITRANS LU AO Analog Output Module provides remote analog output for the measurement points of the LU10 level monitor.

Specification

Mode of Operation
Input
Communications Data from SITRANS LU10
- Transmission Rate 4800 bits/s
- Voltage ± 20 mA bipolar current loop
- Polarization Non-polarized
- Max. load 1 receiving unit
|Output
Analog Outputs 10 analog outputs, programmable
from SITRANS LU10
0 or 4 ... 20 mA, isolated
± 20 mA bipolar current loop Input and transmission
- Max. load 750Ω
- Resolution 0.1%
Rated Operating Conditions
Ambient conditions
-Ambient temperature for enclosure -20 ... +50 °C (-5 ... +122 °F)
- Location Indoor/outdoor
- Installation category II
- Pollution degree 4
Design
Weight 2 kg (4.4 lbs)
Material (enclosure) Polycarbonate
Degree of protection Type 4X/NEMA 4X/IP65
- Cable connection 2 copper conductors, twisted,
with foil shield/drain wire, 300 V
0.5 ... 0.75 mm² (22 ... 18 AWG)
- Electrical connection and relay connection Copper conductor according to
local requirements, rated 250 V 5 A
Power supply 100/115/200/230 V AC ± 15%,
50/60 Hz, 15 VA
Displays and controls 1 LED for display of voltage/
communications state
Certificates and approvals CE, FM, CSAUS/C , C-TICK
