Locking Well Caps

  • Designed for multiple installation options
  • Simple, Durable, Sturdy including lockable, secure installation
  • Additional Access Hole for Monitoring Equipment
Product Options
Well Cap Adaptor (4 inch)

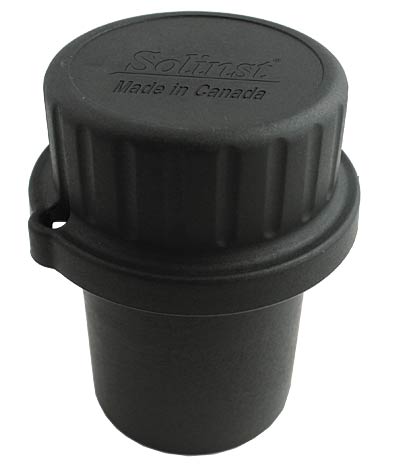

The Model 3001 Levelogger Well Cap Assembly is designed to fit 2" wells (or 4" wells with an Adaptor), and provides options for installing Leveloggers with wireline, Kevlar cord, or using a Direct Read Cable.

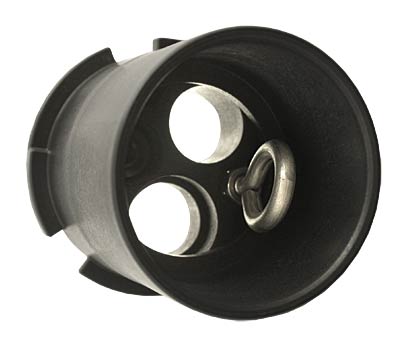

When installing Leveloggers using a stainless steel wireline or Kevlar cord suspension, the water level dataloggers are securely supported when tied off to the eyebolt included on the underside of the well cap insert.

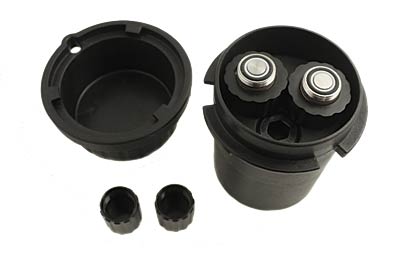

When installing Leveloggers using a Direct Read Cable, the cable simply fits inside the well cap insert hole, when the red dust cap is removed. For Levelogger installations where a Barologger is intended to be installed in the same well, the well cap supports up to two Direct Read Cables. Even with two Direct Read Cables installed, there is still an access hole available for manual water level measurements or groundwater sampling, without disturbing the down-hole Leveloggers.

Manufactured by: Solinst
Model: Locking Well Caps

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance
