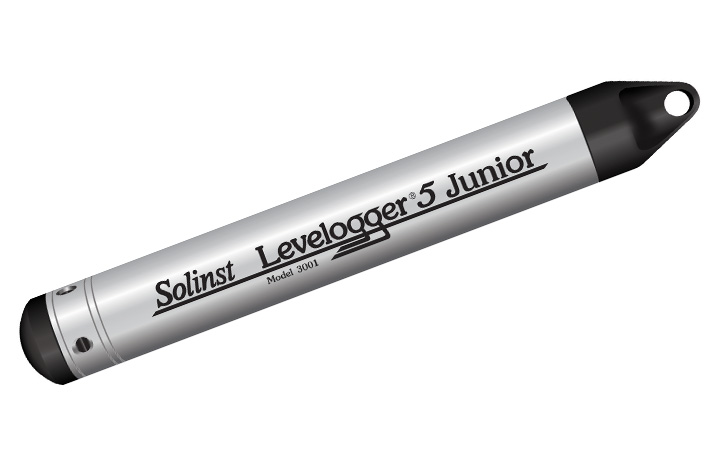

Solinst Levelogger 5 Junior

  • 5-year Battery Life Based on a 1 reading/minute sampling rate
  • Memory for 75,000 data points
  • Single-eye optical for fast, reliable communication
  • Accuracy of 0.1% FS
Product Options

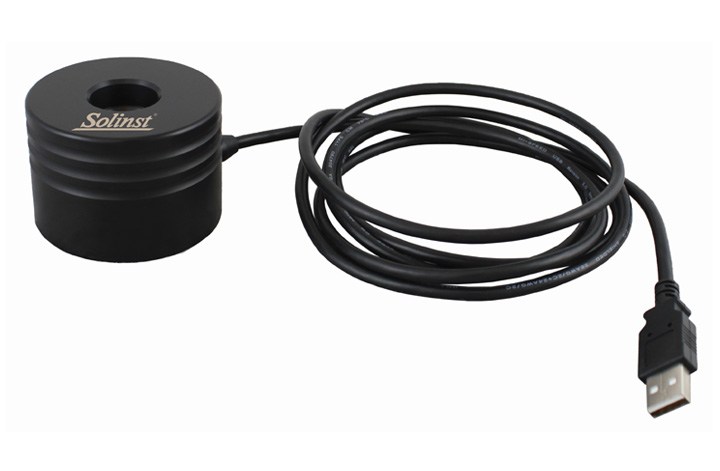

Desktop Reader 5

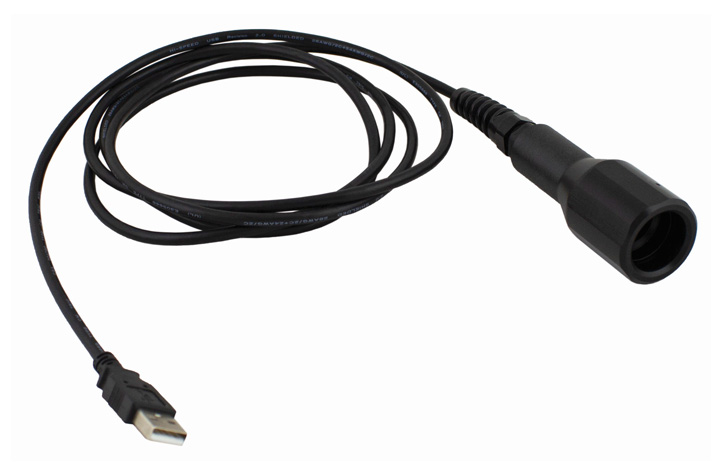

Field Reader 5

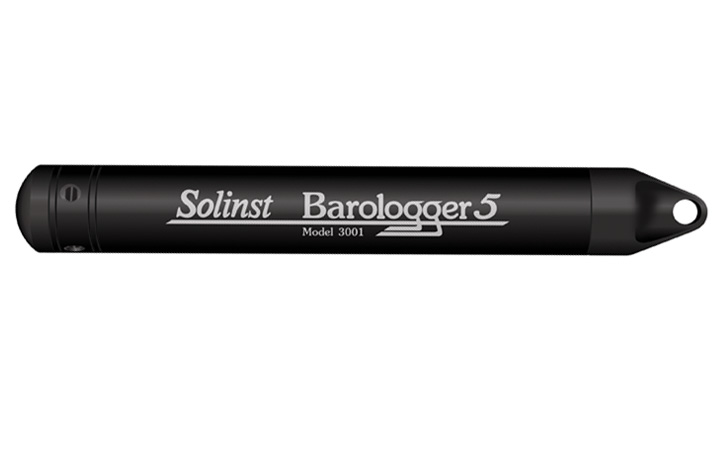

Barologger 5 Datalogger
Levelogger PC Interface Cable
Levelogger 5 App & App Interface

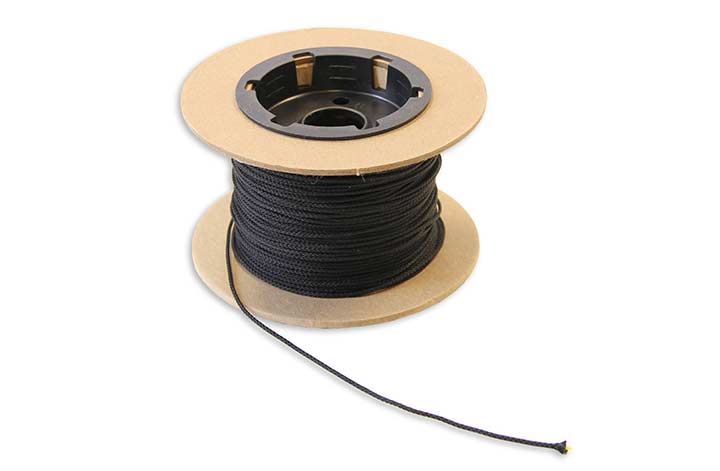

Kevlar Cord

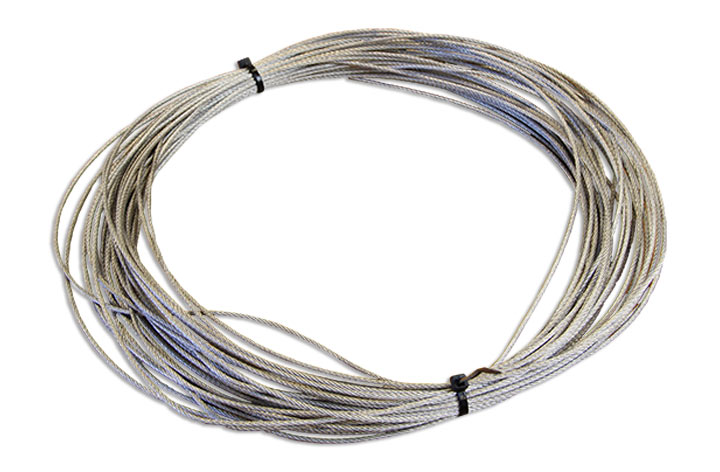

Stainless Steel Cable

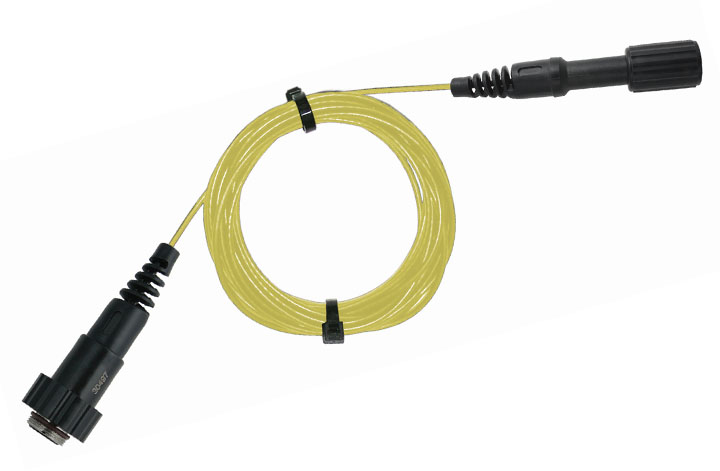

Levelogger Direct Read Cable
Edge-L5 DRC Adapter

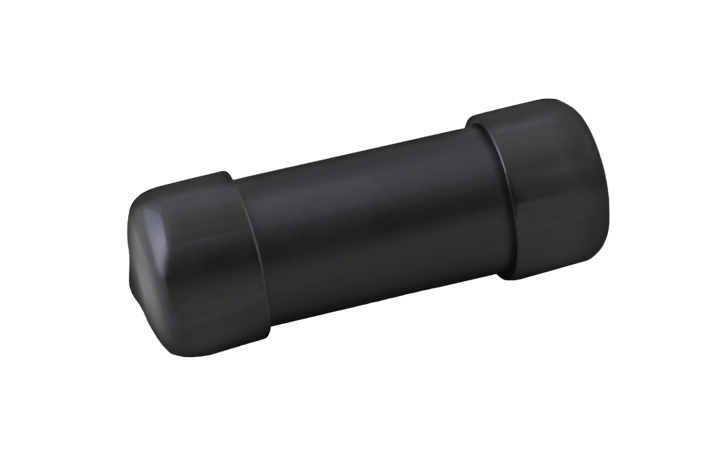

L5 to Edge DRC Adapter

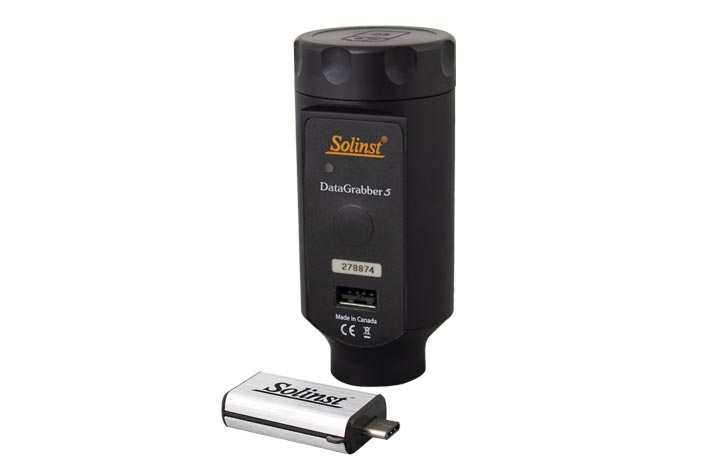

3001 DataGrabber 5

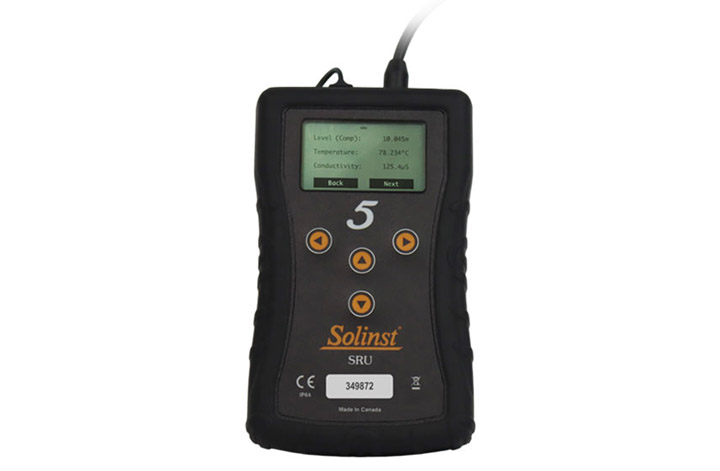

4001 SRU Solinst Readout Unit

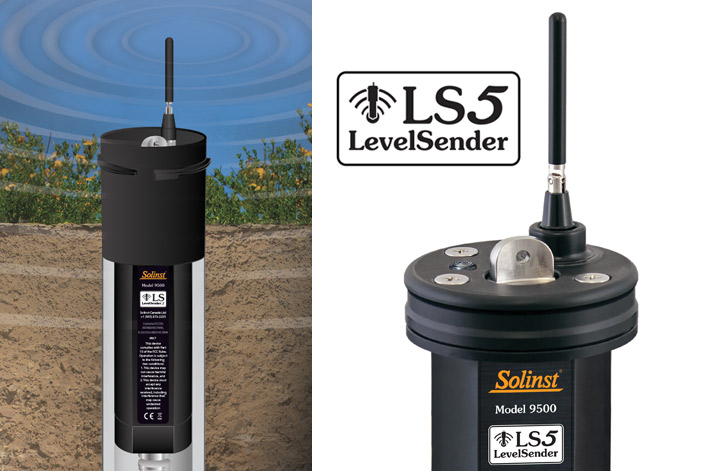

LevelSender 5

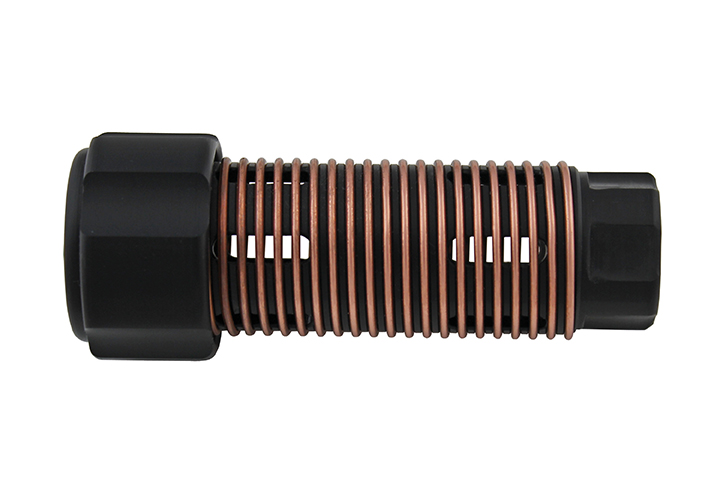

BioFoul Screen

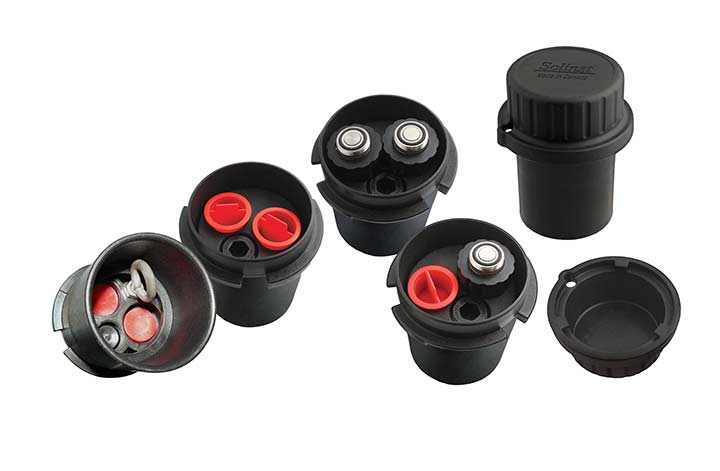

3001 Well Cap Assembly
Artesian Well Fitting Assembly
114606

Overview

The Levelogger 5 Junior provides a low-cost solution for monitoring surface water and goundwater levels and temperature. It combines a data logger, temperature and pressure sensor in a compact stainless-steel housing to provide an accuracy 0.1% FS.

The durable Hastelloy® pressure sensor records absolute pressure and provides excellent performance, even in harsh environments. It can withstand 2 times overpressure without permanent damage.

The Levelogger 5 Junior benefits from a 5-year battery life when logging at 1-minute intervals. Its built-in data logger has storage capacity for 75,000 sets of water level and temperature data points. Logging intervals are user-defined between 0.5 seconds and 99 hours.

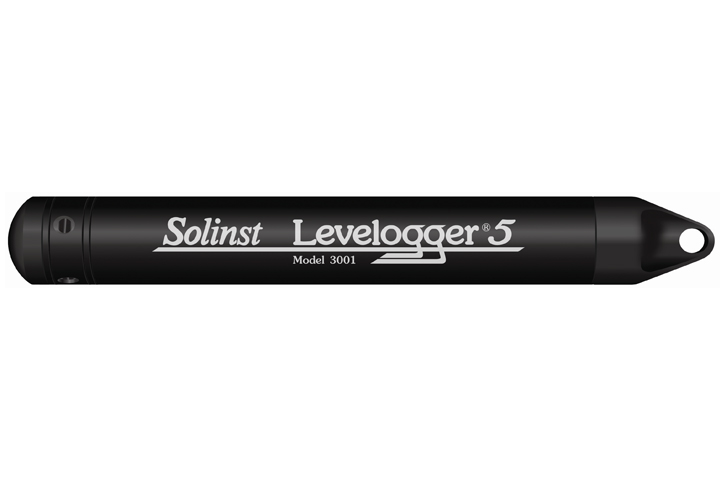

For applications requiring a greater accuracy or more sampling options, the 3001 Solinst Levelogger 5 is available. If conductivity measurements are also required, the Solinst 3001 Levelogger 5 LTC is ideal.

Manufactured by: Solinst
Model: Solinst Levelogger 5 Junior

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance
  • IoT Cloud Compatible

Applications

Monitoring water levels in wells and surface water
Pump and slug tests
Reservoir and storm water runoff management
Watershed and drainage basin monitoring
Stream gauging, lake and wetland monitoring
Tank level measurement

Specification

Levelogger 5 Junior Specifications
Level Sensor: Piezoresistive Silicon with Hastelloy Sensor
Ranges: 5,10 m
Accuracy: ± 0.1% FS
Resolution: 0.02% FS to 0.01% FS
Units of Measure: cm, m, ft, psi, kPa, bar, (ºC, ºF)
Normalisation: Automatic Temp Compensation
Temp Comp. Range: 0ºC to 40ºC
Temperature Sensor: : Platinum Resistance Temperature Detector
Accuracy: ± 0.1ºC
Resolution: 0.1ºC
Battery Life: 5 Years (based on 1 reading/minute)
Operating Temperature: - 20ºC to 80ºC
Clock Accuracy (typical) ± 1 minute/year (-20 °C to 80°C)
Memory Modes: Continuous or Slate
Maximum Readings: 75,000 sets of readings
Communication: Optical high-speed: 57,600 bps with USB
Size: 22 mm x 160 mm (7/8" x 6.3")
Weight: 166 grams (5.6 oz)
Wetted Materials: 316L Stainless Steel, Delrin®, Viton®, Hastelloy
Sampling Mode: Linear, Real Time View, Future Start
Measurement Rates: 0.5 sec to 99 hours
Barometric Compensation: Data Wizard and Barologger 5

Downloads

Accessories

Related products

FAQ's

As the Levelogger App Interface will not connect directly to the top of a Solinst datalogger, it is necessary to have connection accessories. With the Levelogger or Rainlogger, one of the following accessories is required:

  • Direct Read Cable, clients use this option to suspend dataloggers in the field when they wish to communicate downhole.
  • When working with Leveloggers that are suspended from wireline, or cord, the units must be removed from the well and connected to either a Direct Read Cable (as above) or an Optical Adaptor.

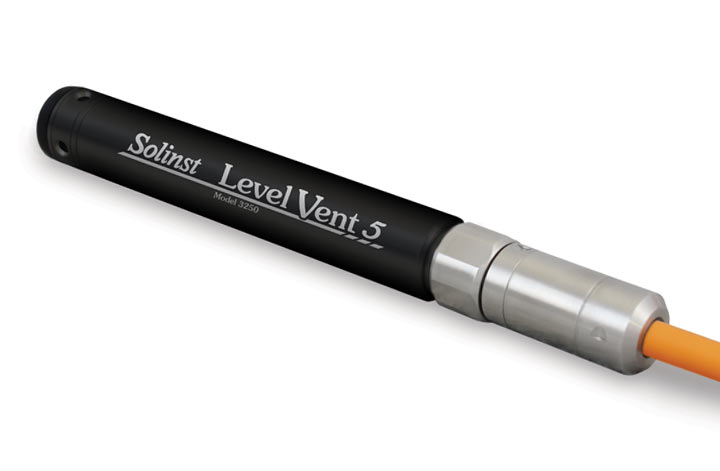

  • For the LevelVent, just connect to the unit via the Vented Cable and LevelVent Wellhead that all units are suspended from in the field – no other connection accessories are required.
  • The AquaVent communication connection is made from the App Interface to the AquaVent Wellhead using an App Connector Cable that is ordered separately.

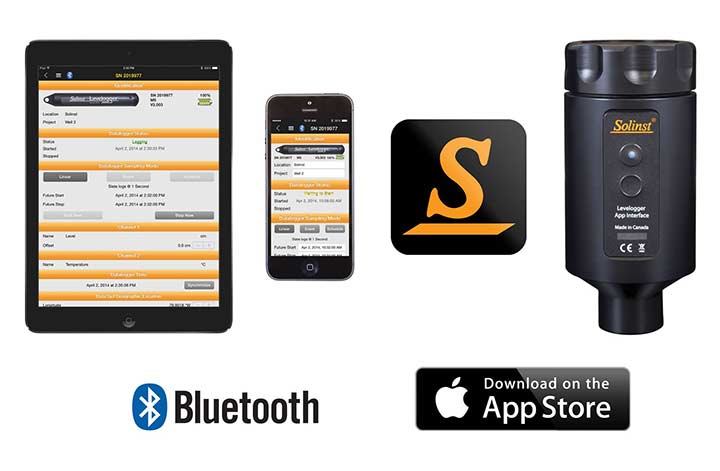

The Levelogger App Interface is portable hardware that connects to the top of your Levelogger via a Direct Read Cable/Adaptor, to a LevelVent Wellhead, or to an AquaVent Wellhead cable. Bluetooth wireless technology allows communication between the Levelogger App Interface and the smart device with the app installed. It allows viewing/downloading of data, and programming of Solinst dataloggers, as well as many other features.
Solinst offers a wide range of dataloggers that can be used with the Leveloggger App Interface. They include the complete, current Levelogger Edge range of units (Edge, Junior Edge, LTC Edge, Rainlogger Edge), previous Gold Leveloggers/Barologgers, and the latest vented datalogger editions, the AquaVent and LevelVent.
  • Program and start dataloggers in the field.
  • Simplify data management in the field by transporting and using less equipment.
  • View real-time readings.
  • Download and e-mail logged data files.
  • Calibrate LTC Leveloggers (NEW).
  • Run the diagnostic utility (NEW) – used for troubleshooting

Leveloggers. Provides detailed information on the datalogger,
and includes options for running a self-test, doing a memory
dump and creating/emailing reports.

The most recent version of the Android App available is 1.2.5 but that is only available for download if your Android device has Android version 8 (oreo) or above. That means, any device running older Android versions can not download the most recent App-This is a restriction that Google has set.

Drivers checkup:

  1. Go to Control Panel
  2. Open Device Manager and look for the Optical Reader listed under “ports” or “other devices”. It will show up with an exclamation mark. To make sure you are looking at the right device, unplug it and plug it back in, the Optical Reader will disappear and appears from the list.
  3. Right click on the device
  4. Click on Update Driver Software (you must have Admin rights to do this, if not, ask to your IT Dept)
  5. Click on Browse My Computer
  6. The folder that contains the drivers should be highlighted in blue in the address bar. The right address should be C: Program Files x86 / Solinst / Levelogger 4_4 / Drivers. If this is not the address you see, click on Browse button and look for the Solinst folder: C: Program Files x86 / Solinst / Levelogger 4_5 / Drivers. Do not go any further, don’t select any subfolder under Drivers. Click OK.
  7. Make sure “include subfolders” check box below the address bar is checked
  8. Click Next
  9. At this time Windows should start installing the drivers from the correct folder.
  10. When finish, go back to Device Manager. If the device was previously listed under “other devices”, it will be now listed under “ports” as USB Serial Port (COM#) assigned.
  11. Please repeat the steps from 3 to 8 to make sure it was installed properly.
  12. Close Device Manager and go to Solinst Software. The USB Serial Port (COM#) assigned should be in the drop menu.
No, Solinst certifies that PFAS is not used, or knowingly present in the manufacturer, or production of their products. www.rshydro.co.uk/files/Solinst-PFAS-Statement.pdf

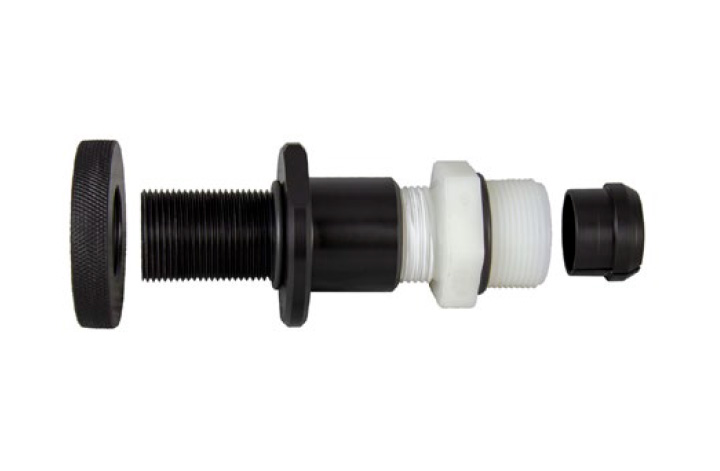

Yes, by using the Solinst Artesian Well Fitting Assembly, wells with pressures up to 30 psi (66 ft. (20 m)) of water column can be measured.
