PT2X Wet/Wet Differential Smart Sensor with Data logging

PT2X differential pressure sensor and logger has many uses
Three Measurements in One Unit
Measures differential pressure, temperature and time
Two Diaphragms
Detects difference between pressure on the low side and pressure on the high side
Barometric Compensation
Compensation utility for use with absolute sensors
Built-In Datalogger
Non-volatile memory can store 520,000 records
The cart is updated.
Overview
Specifications
Downloads

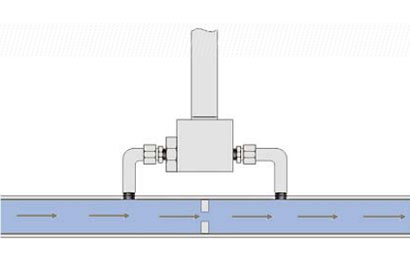

The PT2X Wet / Wet Differential Smart Sensor with integrated datalogger is the latest in pressure measurement technology. It contains two diaphragms which detect the difference between the pressure on the high side and the pressure on the low side.

The PT2X Wet Wet Differential Smart Sensor comes with powerful Aqua4Plus software. This easy to use software gives the user extensive control, including flexible programming, easy field calibration, real time monitoring and a delayed start feature.

This device is capable of networking several PT2X Wet/Wet sensors, or a combination of Smart Sensors together and control them from a single computer or wireless telemetry system.

Other features:

  • Measures pressure, temperature and time
  • Modbus protocol for RTU and PLC applications
  • Ranges available from 15 PSI to 500 PSI
  • Non-volatile memory
  • Stores over 130,000 records
  • Available with or without cable
  • Cable options available - polyethylene, polyurethane or PTFE/FEP
  • Powered with two AA batteries or with auxiliary power supply

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance

Applications

  • Used to replace analog sensors with separate data loggers
  • In pressure equalization applications, in corrosive and liquid environments
  • Flow measurement
